The 23 Gram Air Pump That Sets Up Camp For You
A whole campsite of inflation and deflation, in something that disappears into a jacket pocket.

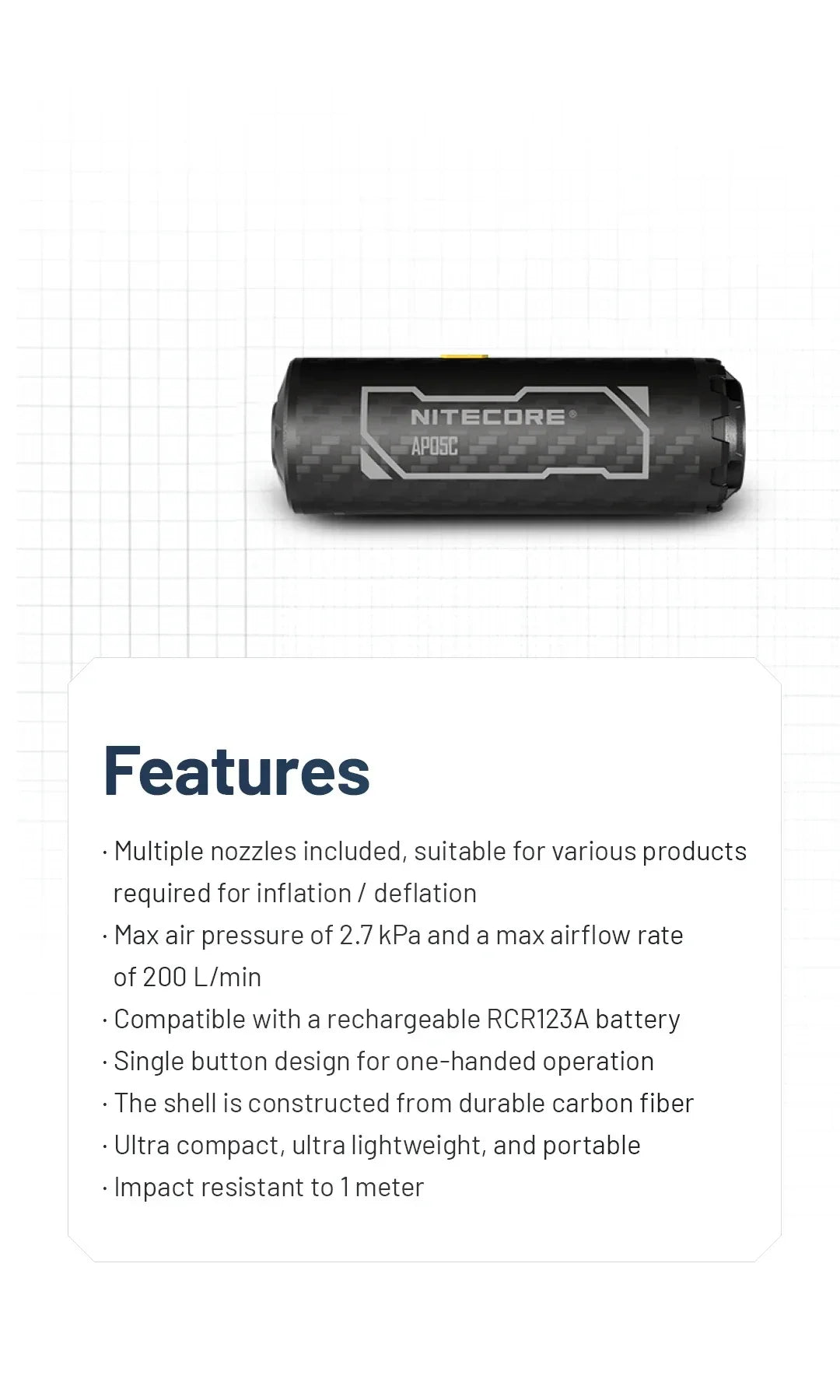

- 23 g carbon fibre body, lighter than a AA battery, impact resistant to 1 metre
- Inflates and deflates from the one device
- 2.7 kPa pressure and 200 L/min airflow for fast, low-pressure inflation
- 4 nozzles plus an adapter fit pads, beds, pillows, floats and swim rings
- Up to 45 minutes of runtime on a single charge
- Rechargeable RCR123A battery with USB-C charging
- Double press to start, so it stays off in your bag
Light Enough To Always Bring Along

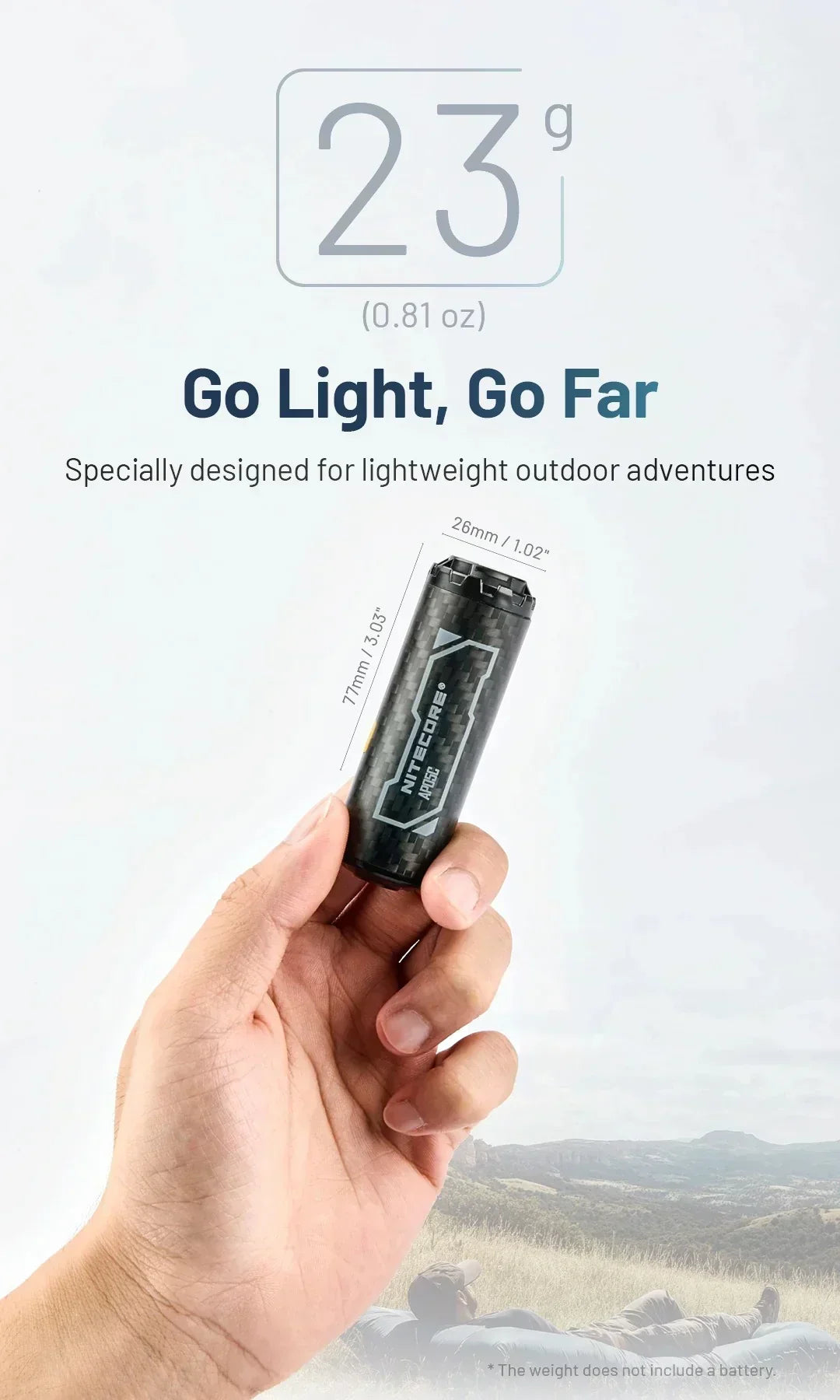

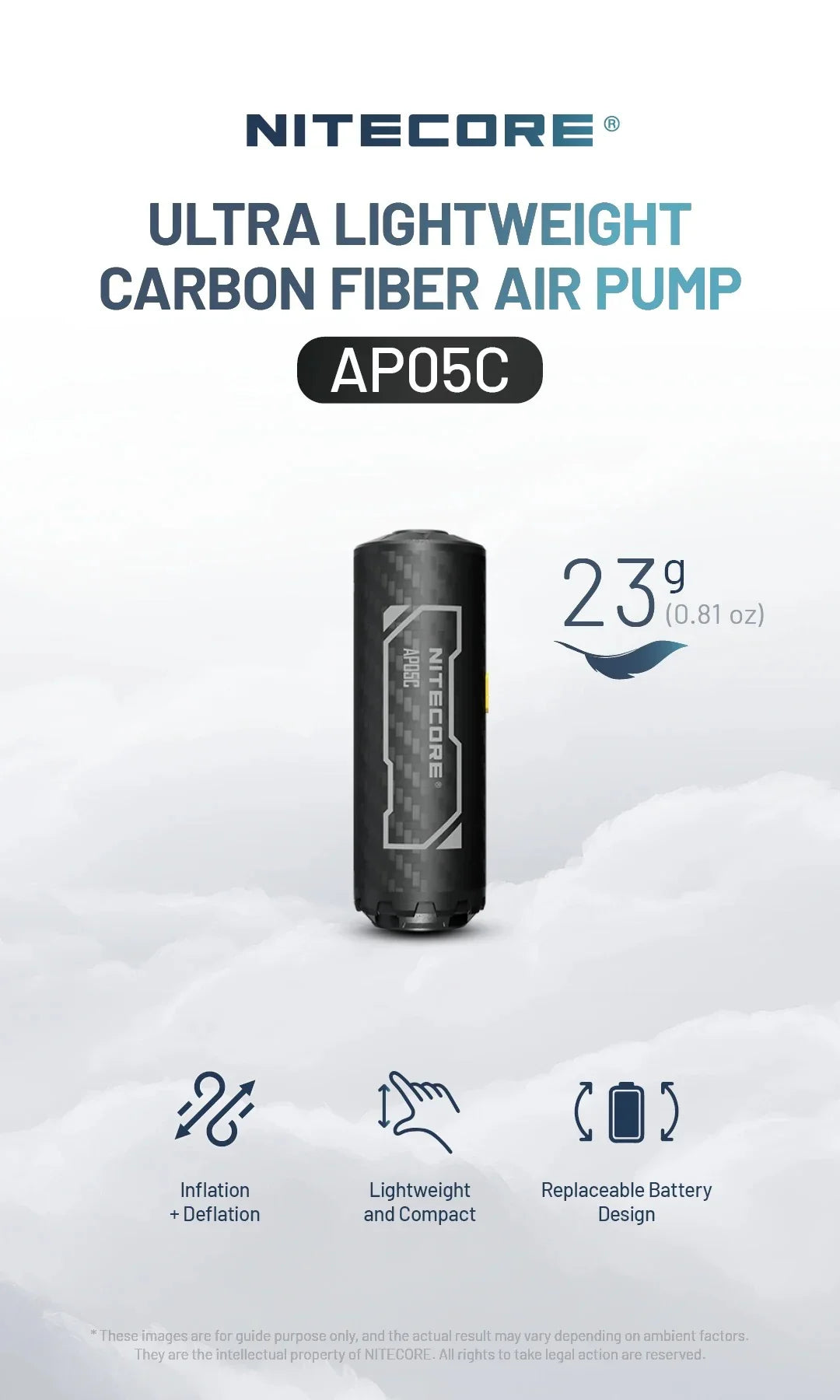

EVERY GRAM EARNS ITS PLACE - The AP05C weighs 23 grams on its own, about the weight of a single AA cell. On a long climb with a loaded pack, that is the kind of weight you forget you are carrying.

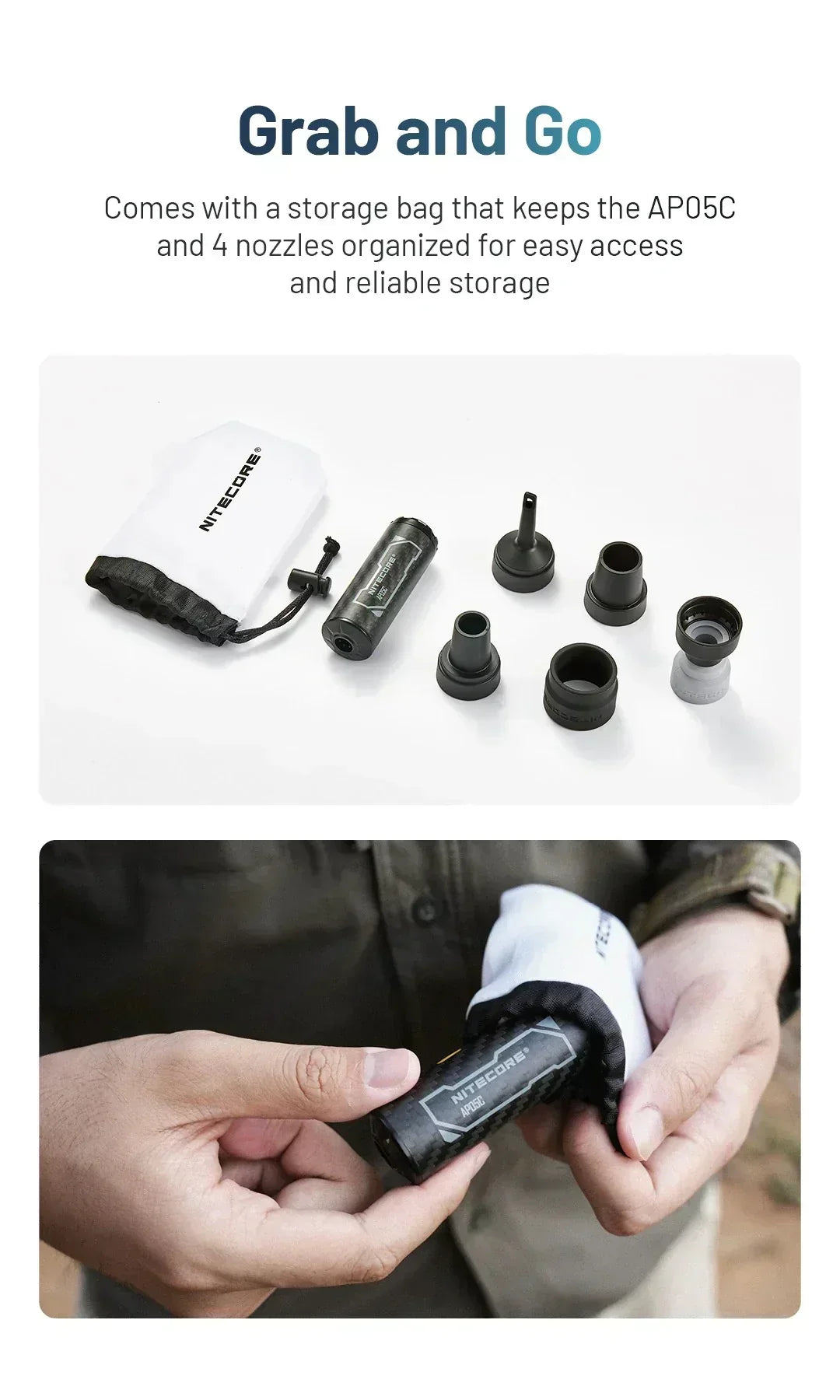

POCKET-SIZED FOOTPRINT - At 77.2mm tall and 26mm across, it sits in a jacket pocket or a corner of your pack next to your carabiners. The storage bag keeps the pump and all four nozzles together so the kit travels as one.
CAMP SET UP IN MINUTES - Reach camp, fit a nozzle and let the pump do the work while you sort the rest of your gear. Your hands and lungs stay free for pitching the tent and starting dinner.

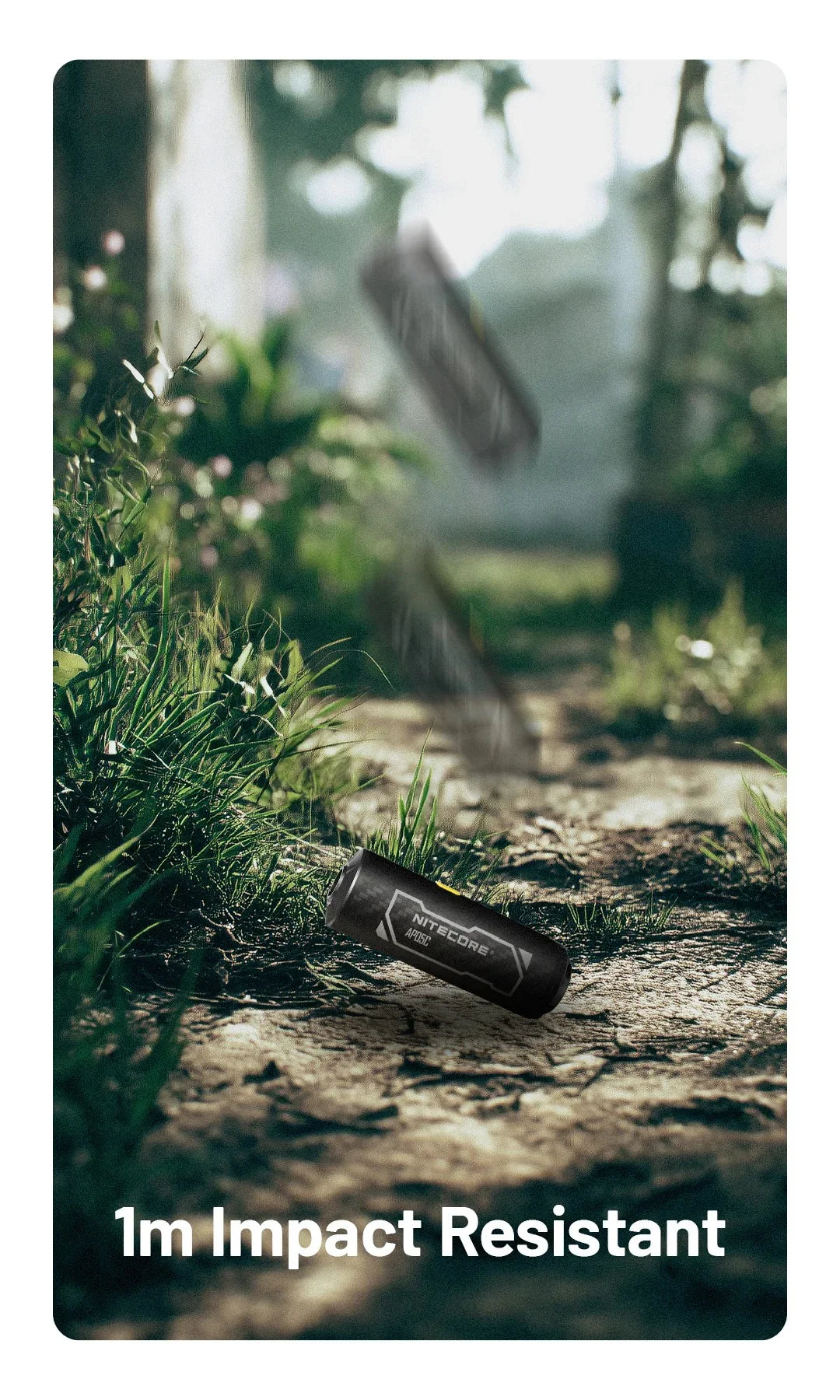

BUILT TO TAKE A KNOCK - The shell is impact resistant to 1 metre, so a drop onto the trail or a tumble in your pack is a non-event.

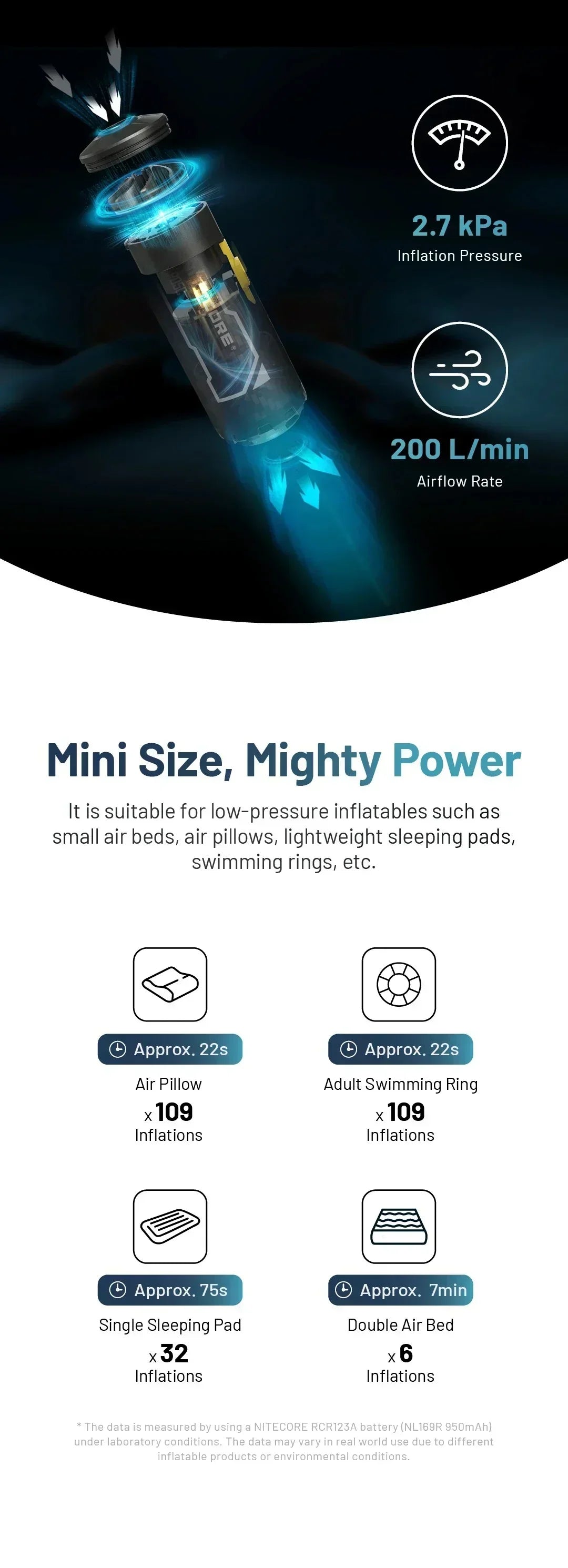

Inflate And Deflate From One Device
With 2.7 kPa of pressure and 200 L/min of airflow, the AP05C brings low-pressure gear up to firmness quickly. It suits small air beds, air pillows, lightweight sleeping pads and swimming rings.

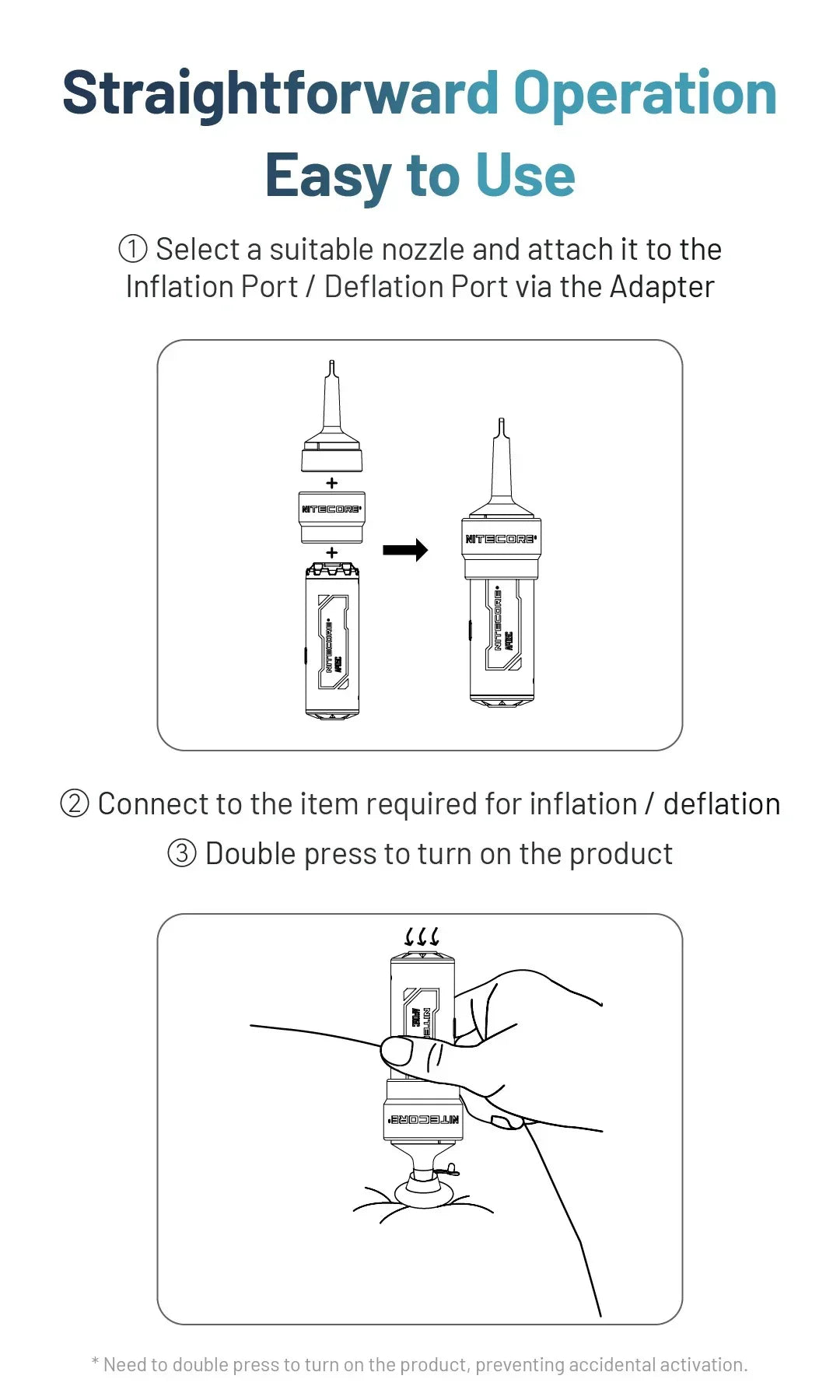

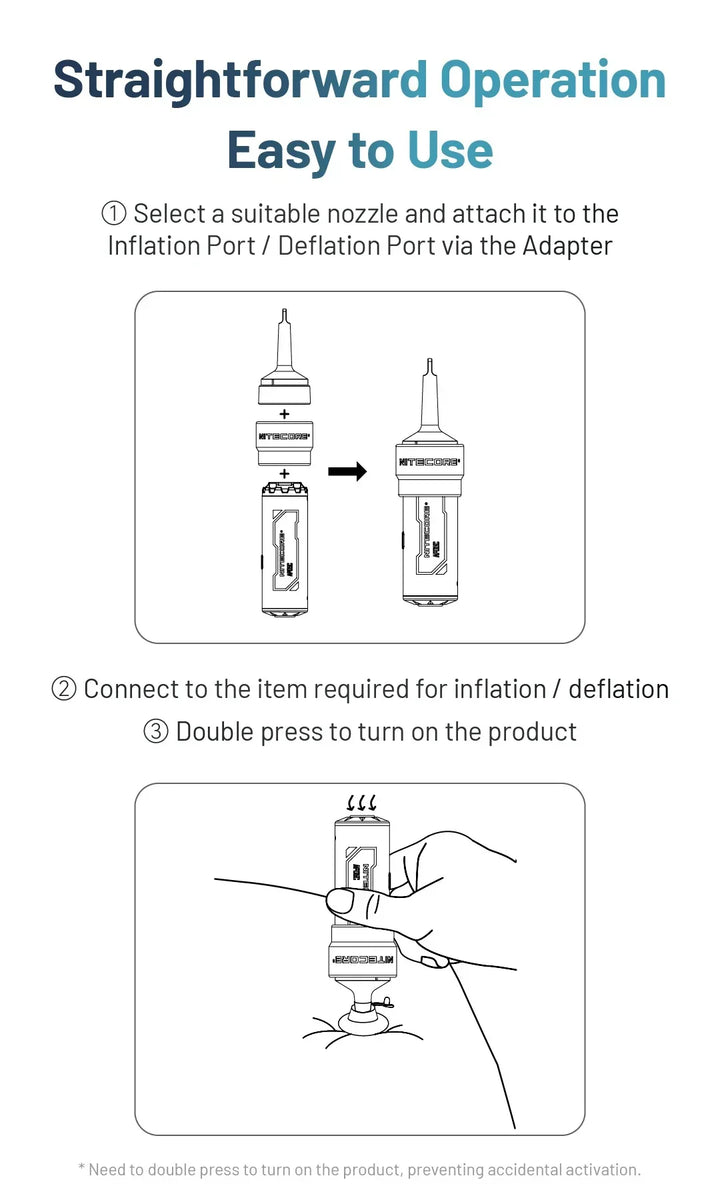

One button runs the show. A double press turns the pump on, which keeps it safely off in your bag until you mean to use it, and a short press turns it off.
The same unit pulls air back out. Switch to the deflation port to flatten a sleeping pad for packing, or to draw the air from a vacuum storage bag and shrink a bulky jacket or towel down to a fraction of its size.
A single charge gives you up to 45 minutes of runtime, plenty for a full campsite of inflatables. Keep each session to ten minutes or less so the motor stays cool and the pump lasts for years.
| ITEM | TIME PER INFLATION |
| Air pillow | Approx. 22 sec |
| Adult swimming ring | Approx. 22 sec |
| Single sleeping pad | Approx. 75 sec |
| Double air bed | Approx. 7 min |
Figures measured by Nitecore with an RCR123A battery (NL169R 950mAh) under laboratory conditions. Real-world times vary with the item, valve and battery.
Pack Down Flat And Store It Small
At 2.7 kPa and 200 L/min, the deflation side works just as briskly as the inflation side. In the morning it draws a sleeping pad or air pillow flat in moments, so the bulky gear rolls down tight and the pack-down is quick.
At home the same airflow empties a vacuum storage bag. Seal a jacket, a duvet or a stack of towels inside, run the pump on the deflation port with the silicone nozzle, and the bundle shrinks to a fraction of its size for a suitcase or a tidy cupboard.
One small tool covers both ends of the trip, the firm-up at camp and the flat-pack at home, so there is nothing extra to carry or store.

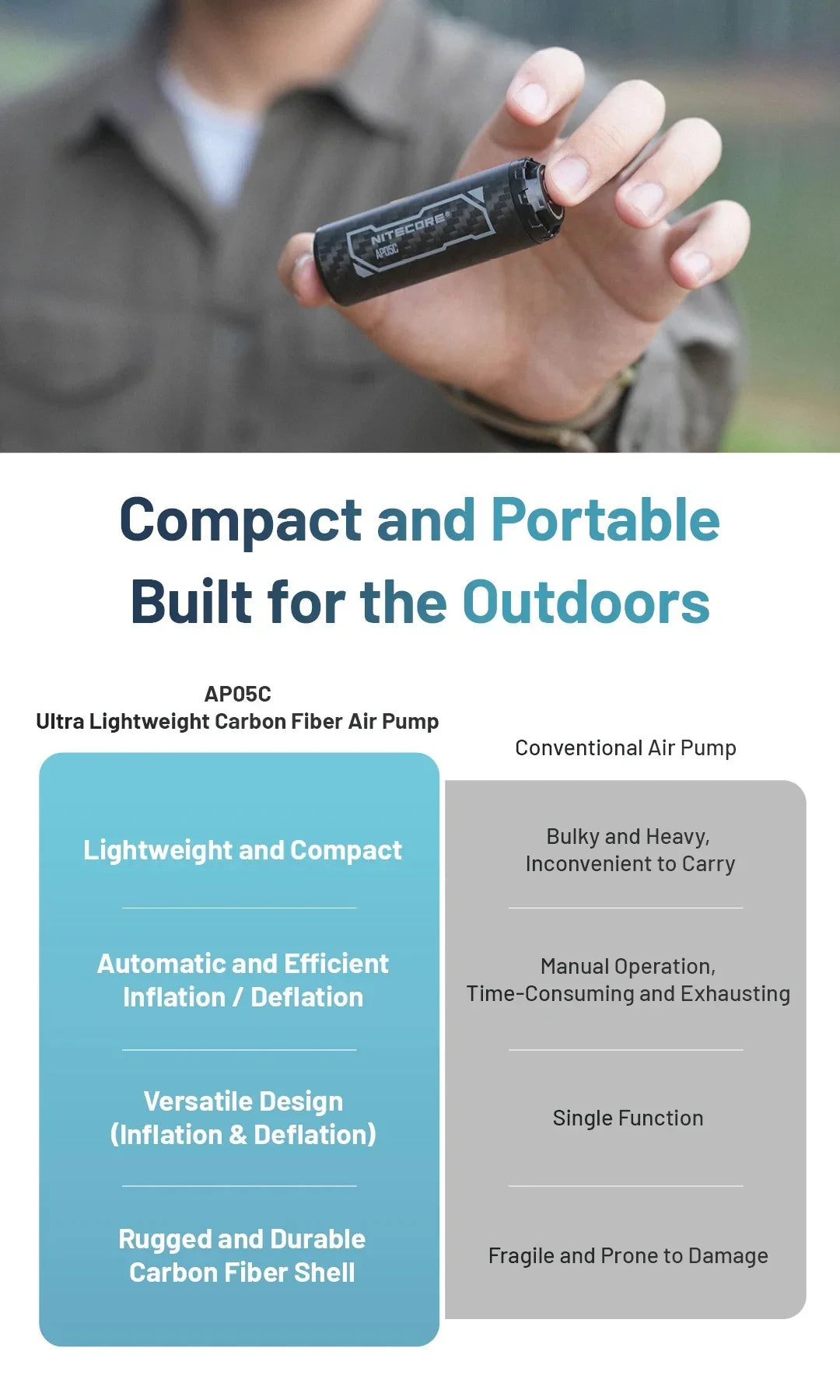

WHAT SETS THE AP05C APART
Pocketable At 23 Grams
A conventional pump is bulky and awkward to carry. The AP05C is 23 grams of carbon fibre that slips into a pocket, so it travels everywhere your gear does.
Automatic, Not Manual
Hand pumps are slow work at the end of a long day. The AP05C runs on its motor at 200 L/min, so your sleeping pad firms up while you rest.
Two Jobs In One Tool
Most pumps only push air in. This one inflates and deflates, so it sets up your pad at night and packs it flat in the morning.

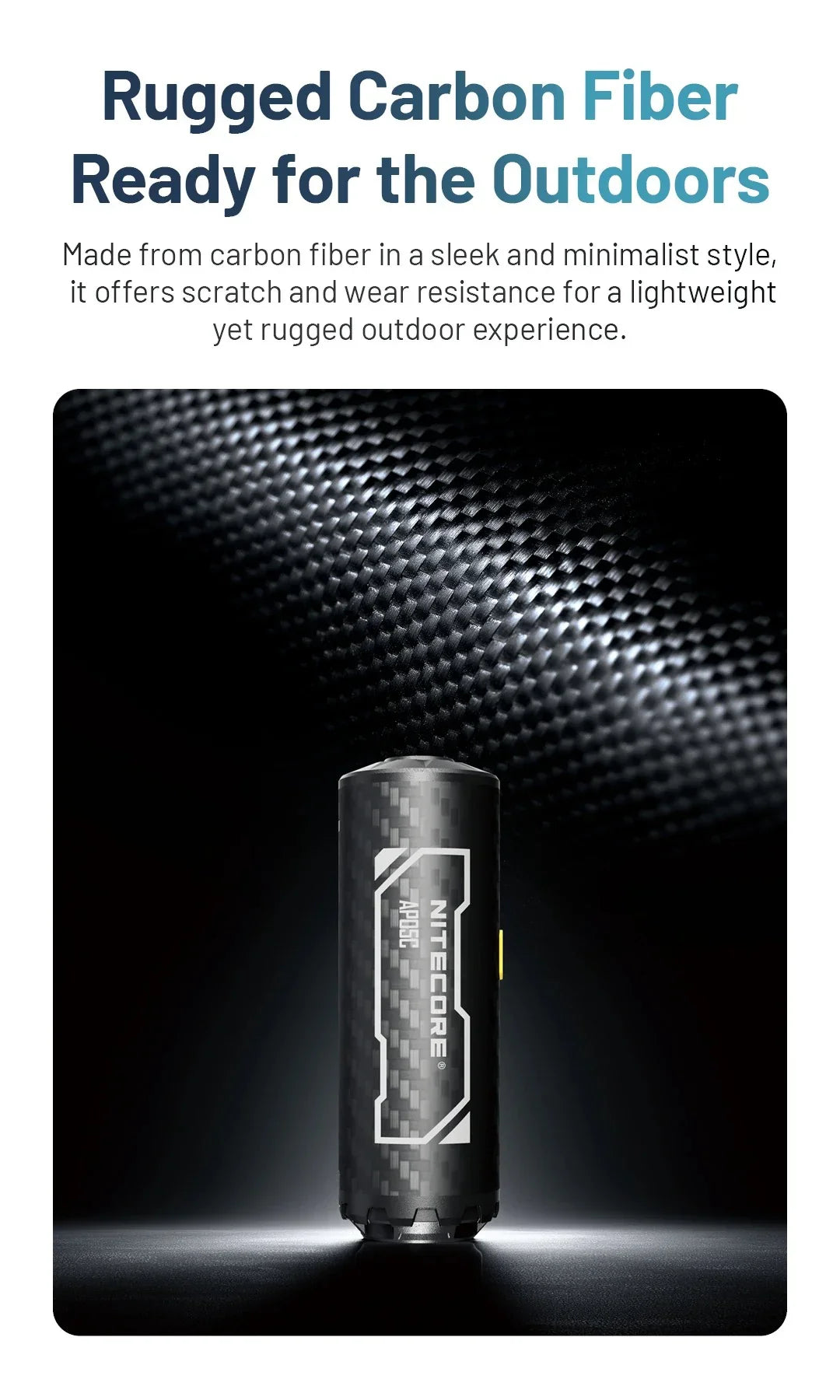

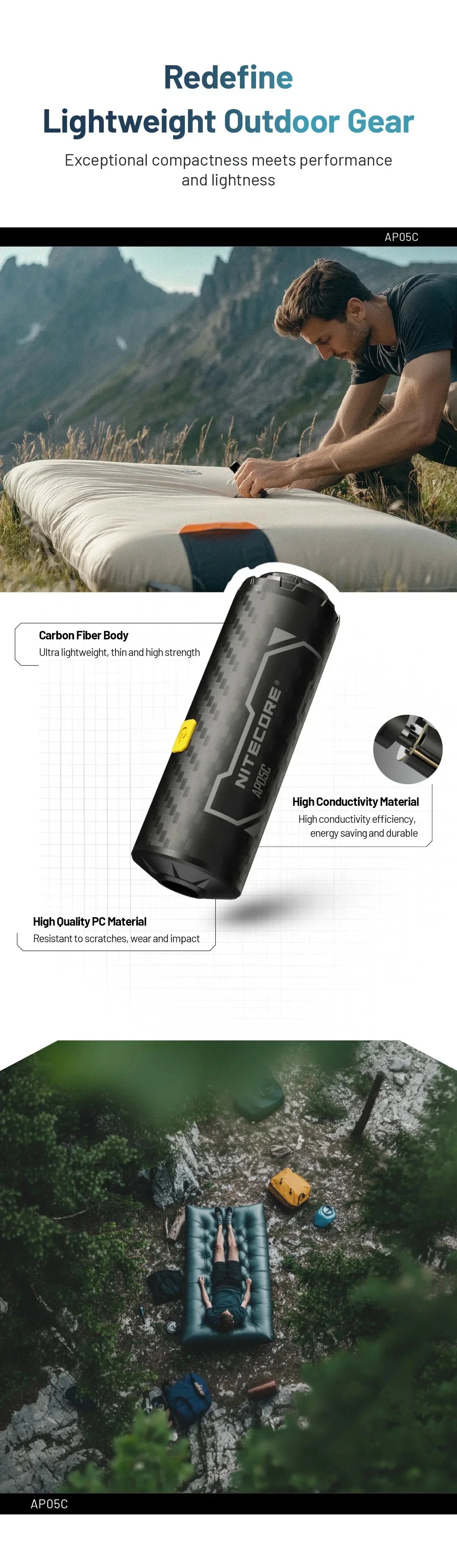

Rugged Carbon Fibre Shell
A carbon fibre body resists scratches and wear and shrugs off a 1 metre drop, where lighter plastic builds tend to crack.
Built For The Outdoors, Powered Your Way

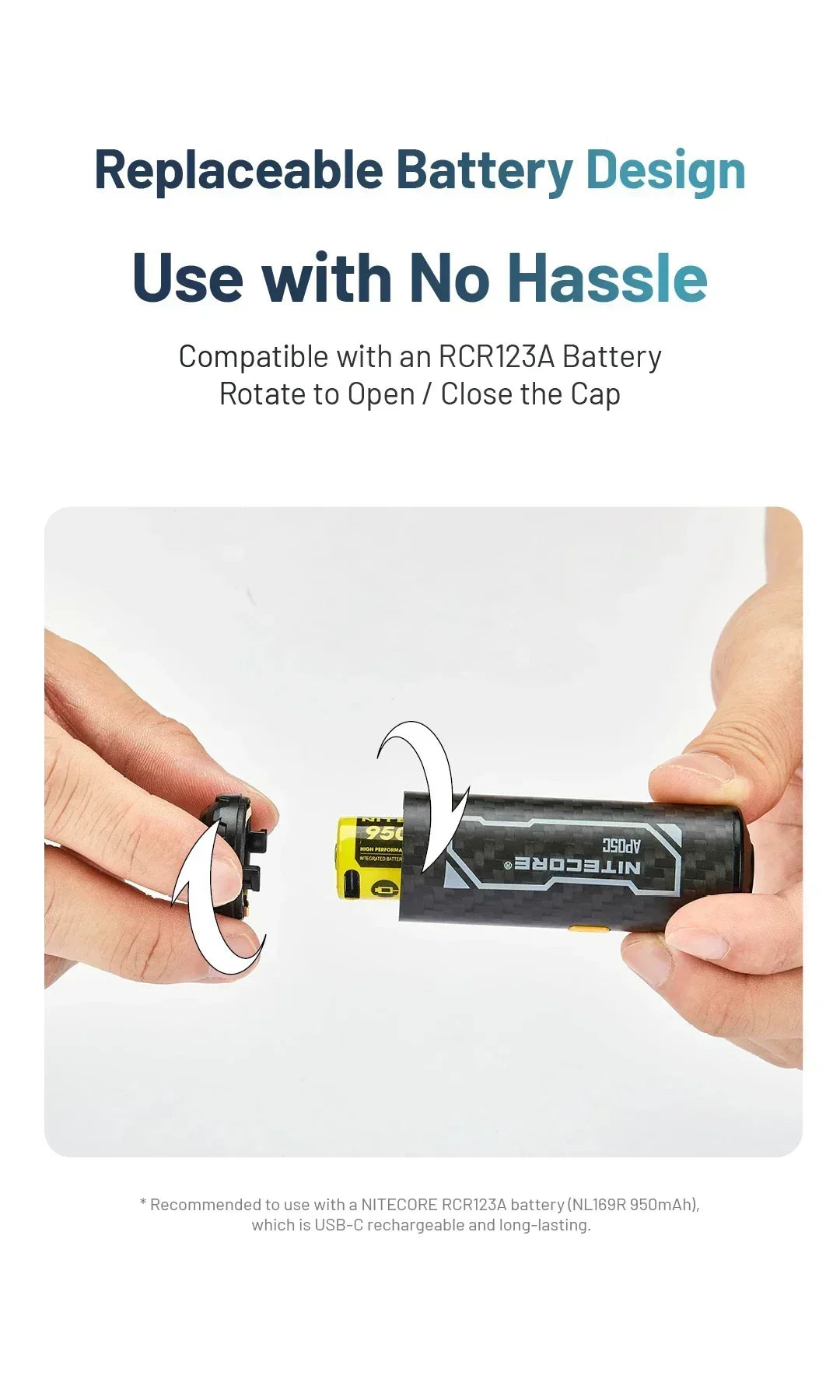

The AP05C runs on a single rechargeable RCR123A battery. Nitecore recommends the NL169R 950mAh, which has a USB-C port built into the cell itself.
That means the same cable that charges your phone tops up your pump. Pop the battery out, plug it into a power bank, a solar panel, a car charger or a wall adapter, and you are ready for the next trip.
Because the battery is user-replaceable, the pump is not tied to the life of one sealed cell. When a battery eventually wears out after years of use, you swap the battery rather than the whole pump.
The carbon fibre shell is rated to operate from -10 degrees Celsius to 40 degrees Celsius, so frosty alpine mornings and hot beach afternoons are both within its range.

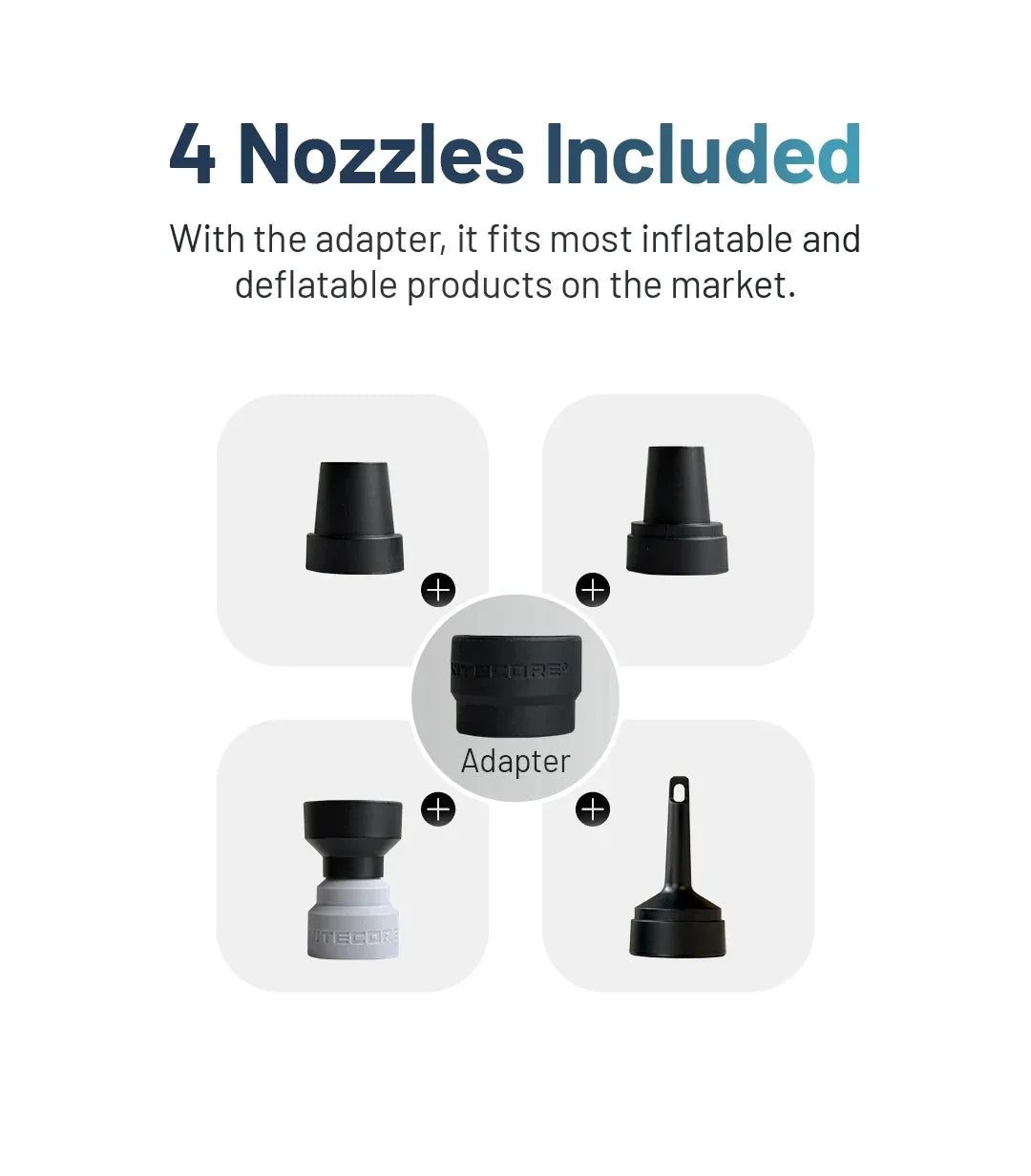

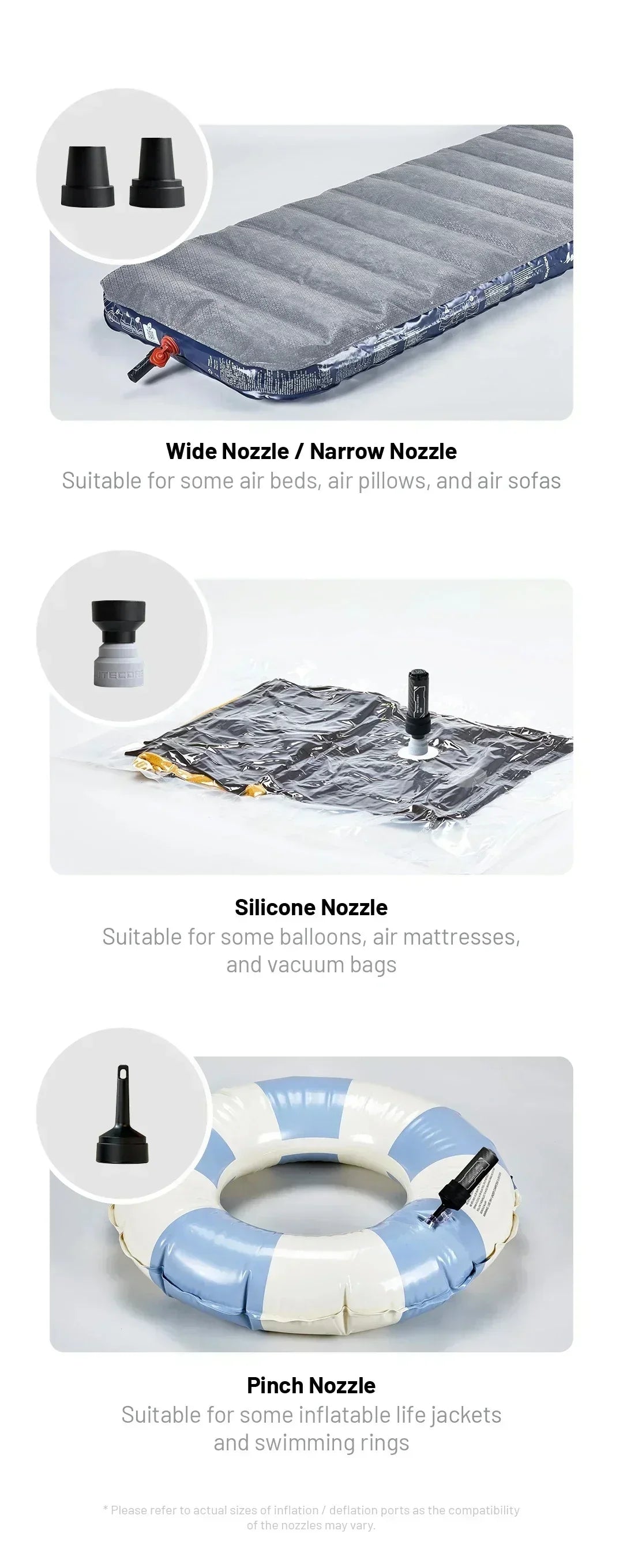

Four Nozzles For The Gear You Actually Own
Four nozzles attach to the inflation or deflation port through the included adapter, so one pump handles a wide range of valves.
WIDE AND NARROW NOZZLES - These cover many air beds, air pillows and air sofas, matching both the larger and smaller valve openings you meet around camp.
SILICONE NOZZLE - Shaped for some balloons, air mattresses and vacuum storage bags, it seals against softer and flatter openings.
PINCH NOZZLE - The flat pinch tip suits some inflatable life jackets and swimming rings, the kind of valve a round nozzle struggles with.
Compatibility depends on the size of your valve, so match the nozzle to the actual inflation or deflation port on your gear.
WHERE THE AP05C EARNS ITS KEEP
Camping And Hiking
Firm up a sleeping pad in around 75 seconds at camp, then deflate it flat in the morning for an easy pack-down.
Beach And Pool Days
Inflate a swimming ring in around 22 seconds, so the family is in the water while the manual pumpers are still going.
Home And Travel Storage
Draw the air from vacuum storage bags to shrink jackets, bedding and towels down small for a suitcase or a tidy cupboard.
Around The Campfire
A steady stream of air helps get a campfire or barbecue going, with no hand fanning. Use it at a safe distance from the flames.
PERFORMANCE
| SPECIFICATION | VALUE |
| Inflation / Deflation Pressure | ±2.7 kPa |
| Airflow Rate | 200 L/min |
| Runtime | Up to 45 min |
| Pressure Range | Low-pressure only (below 3 kPa) |
| Operating Temperature | -10°C to 40°C (14°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Runtime measured by Nitecore using an RCR123A battery (NL169R 950mAh) under laboratory conditions. Real-world results vary with the battery and the items being inflated.
TECHNICAL SPECIFICATIONS
| Shell Material | Carbon fibre |
| Weight | 23 g ±1 g / 0.81 oz (battery and accessories not included) |
| Dimensions | 77.2mm x Φ26.0mm (3.04" x Φ1.02") |
| Impact Resistance | 1 metre |
| Battery | 1 x rechargeable RCR123A (not included) |
| Recommended Battery | Nitecore NL169R 950mAh, USB-C rechargeable |
| Operation | Single button, double press to turn on |
| Nozzles Included | 4 nozzles plus adapter |
| Download Instruction Manual (PDF) | |
FREQUENTLY ASKED QUESTIONS
Can the AP05C inflate car or bicycle tyres?
No. The AP05C is built for low-pressure inflation only, below 3 kPa. It is designed for soft gear such as air beds, air pillows, sleeping pads, pool floats and swimming rings, not for the high pressures a car or bicycle tyre needs.
Does the AP05C come with a battery?
The battery is not included. The pump takes one rechargeable RCR123A cell, and Nitecore recommends the NL169R 950mAh, which charges over USB-C straight from the battery. You add the battery separately so you can match it to the cells you already use.
How long can I run it in one go?
Keep each session to ten minutes or less. The pump has up to 45 minutes of runtime per charge across several sessions, and the ten-minute limit lets the motor rest between inflatables so the AP05C stays reliable for the long term.
What's In The Box
- 1x AP05C Ultra Lightweight Air Pump - the 23 g carbon fibre body
- 4x Nozzles - wide, narrow, silicone and pinch tips for a range of valves
- 1x Adapter - connects the nozzles to the inflation and deflation ports
- 1x Storage Bag - keeps the pump and nozzles together in your pack
